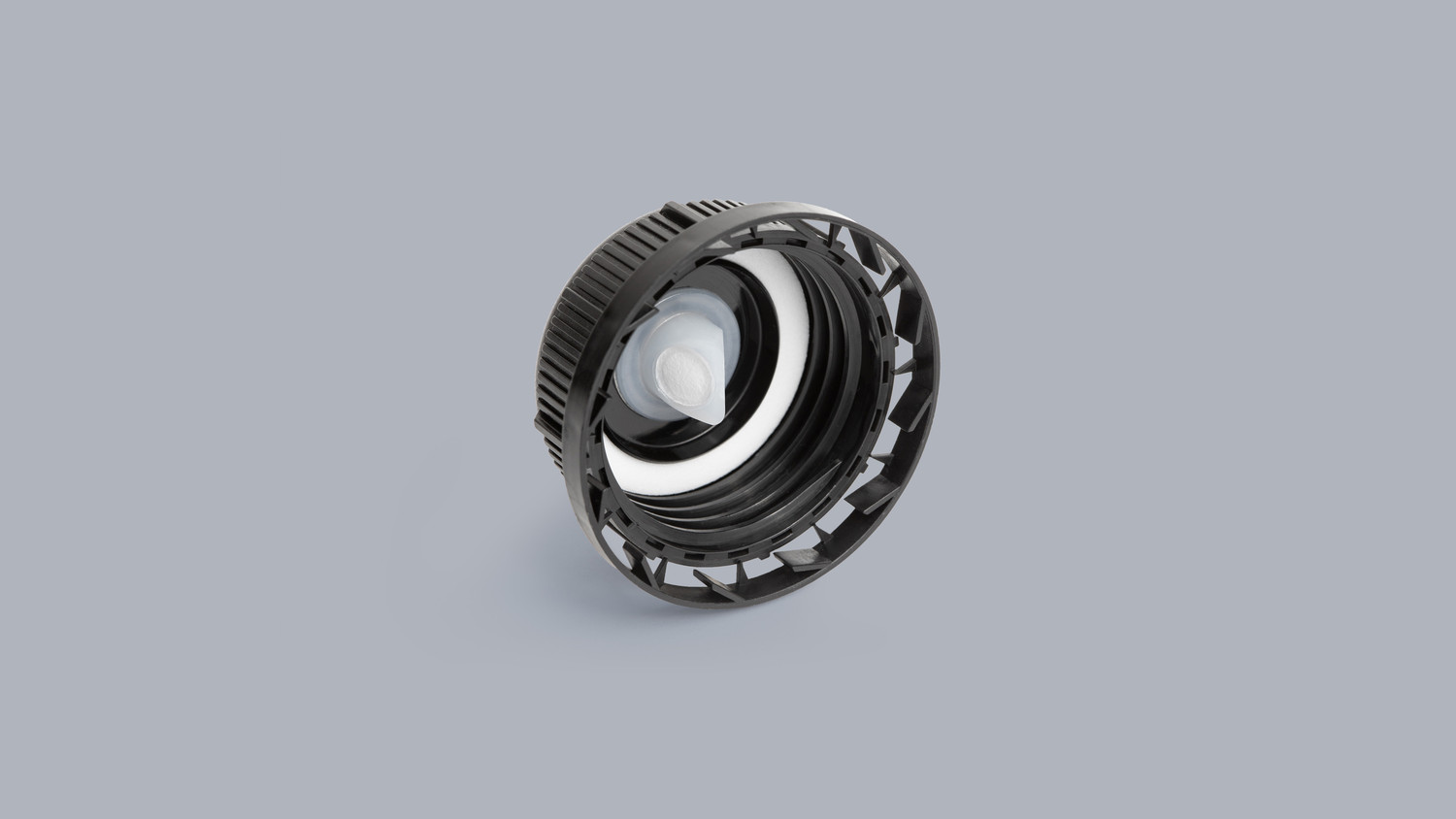

Product portfolio

of FLUXX^® Vented Caps (Series KSE)

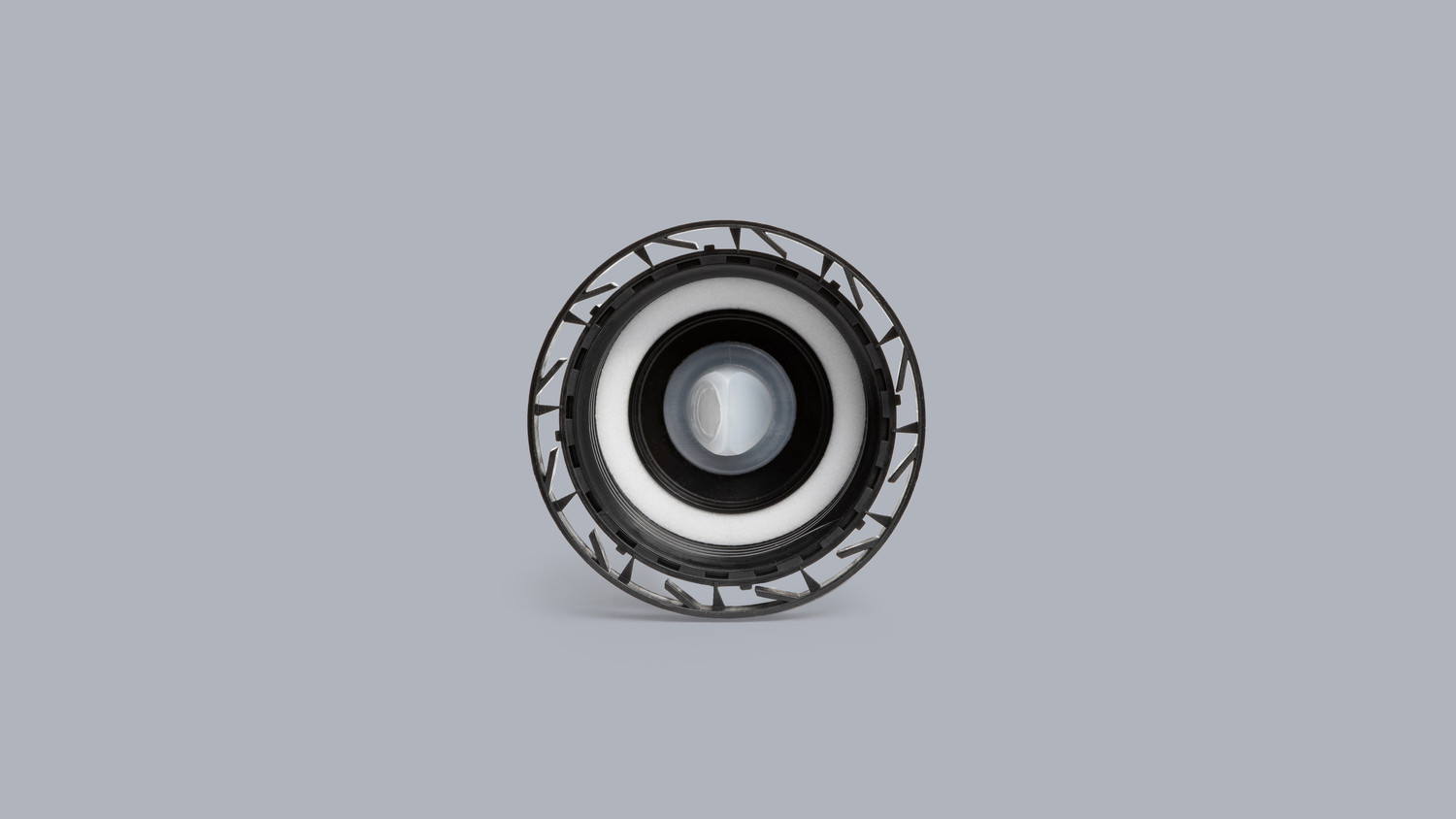

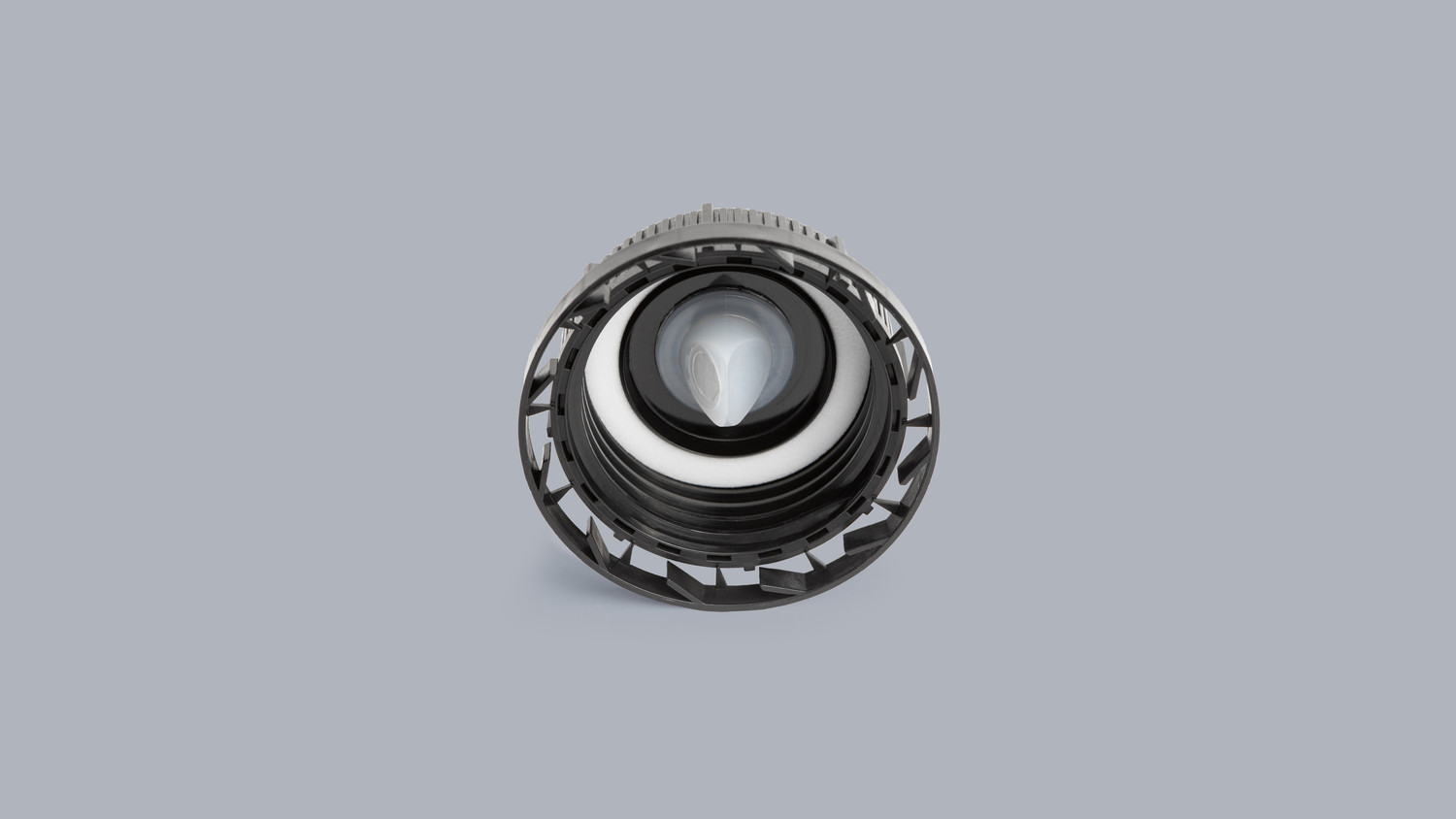

Item Number: 332 93x

with molded on tamper-evidence
ring for DIN 45 thread

Performance:
Typical airflow at 12 mbar: 5.0 L / h
Typical water entry pressure: 0.8 bar

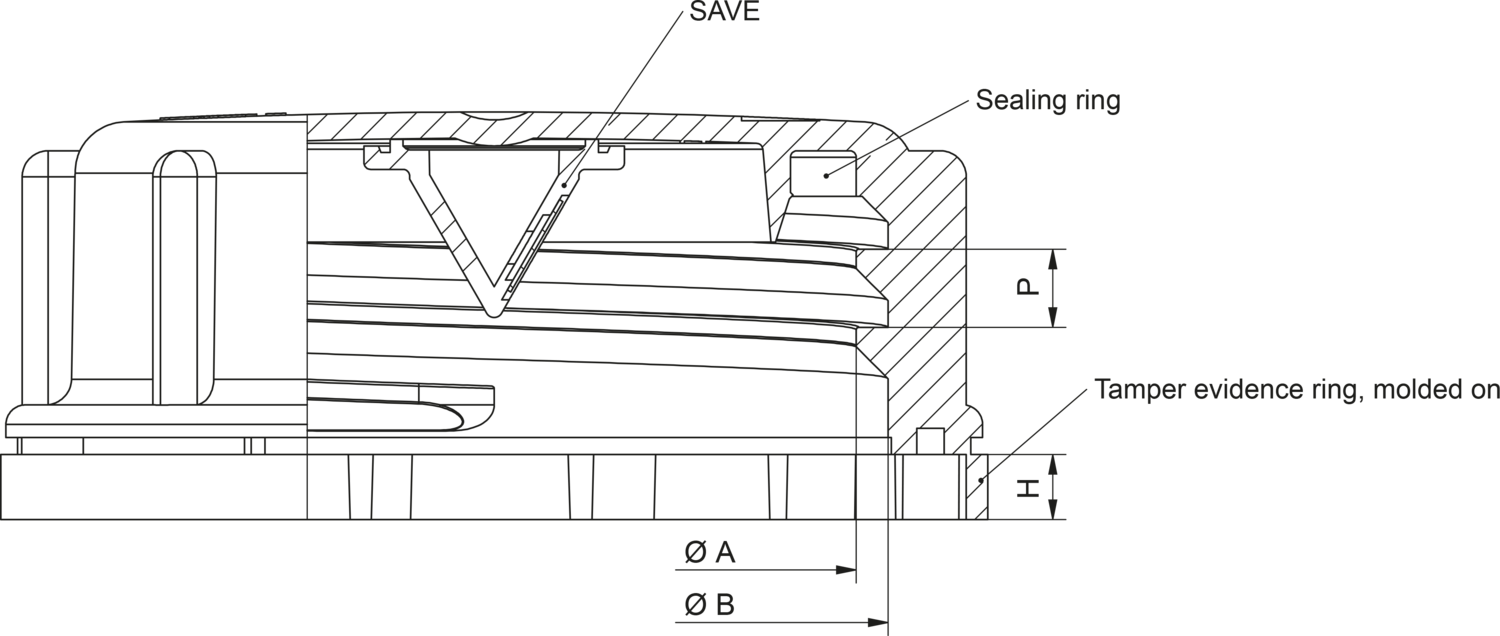

Dimensions:
Ø A = 41.1 mm / 1.618 in.
Ø B = 44.8 mm / 1.764 in.
P (Thread pitch) = 4 mm / 0.157 in.
H = 5 mm / 0.197 in.

Quantity:
18,000 pcs. (20 cartons)

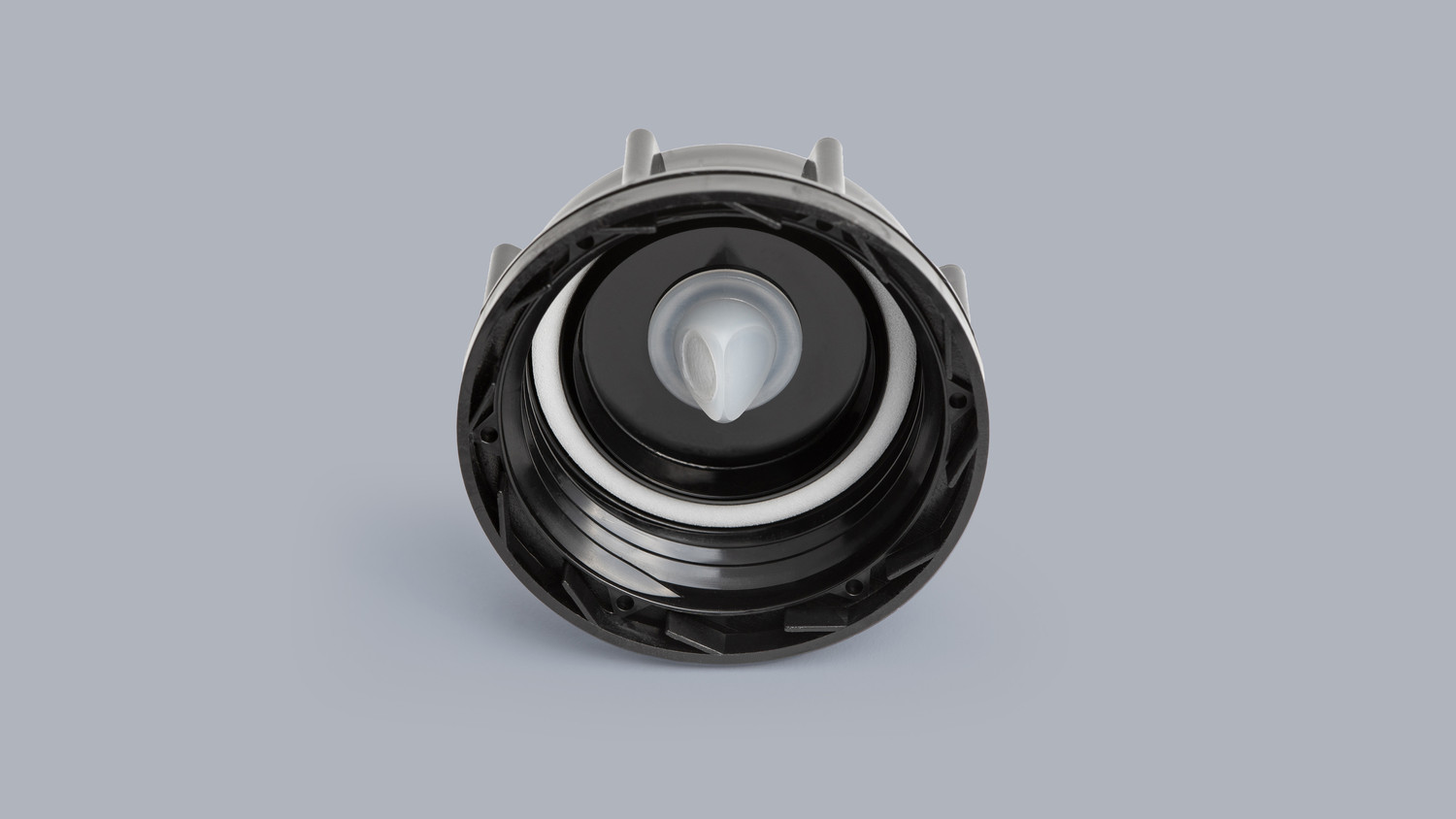

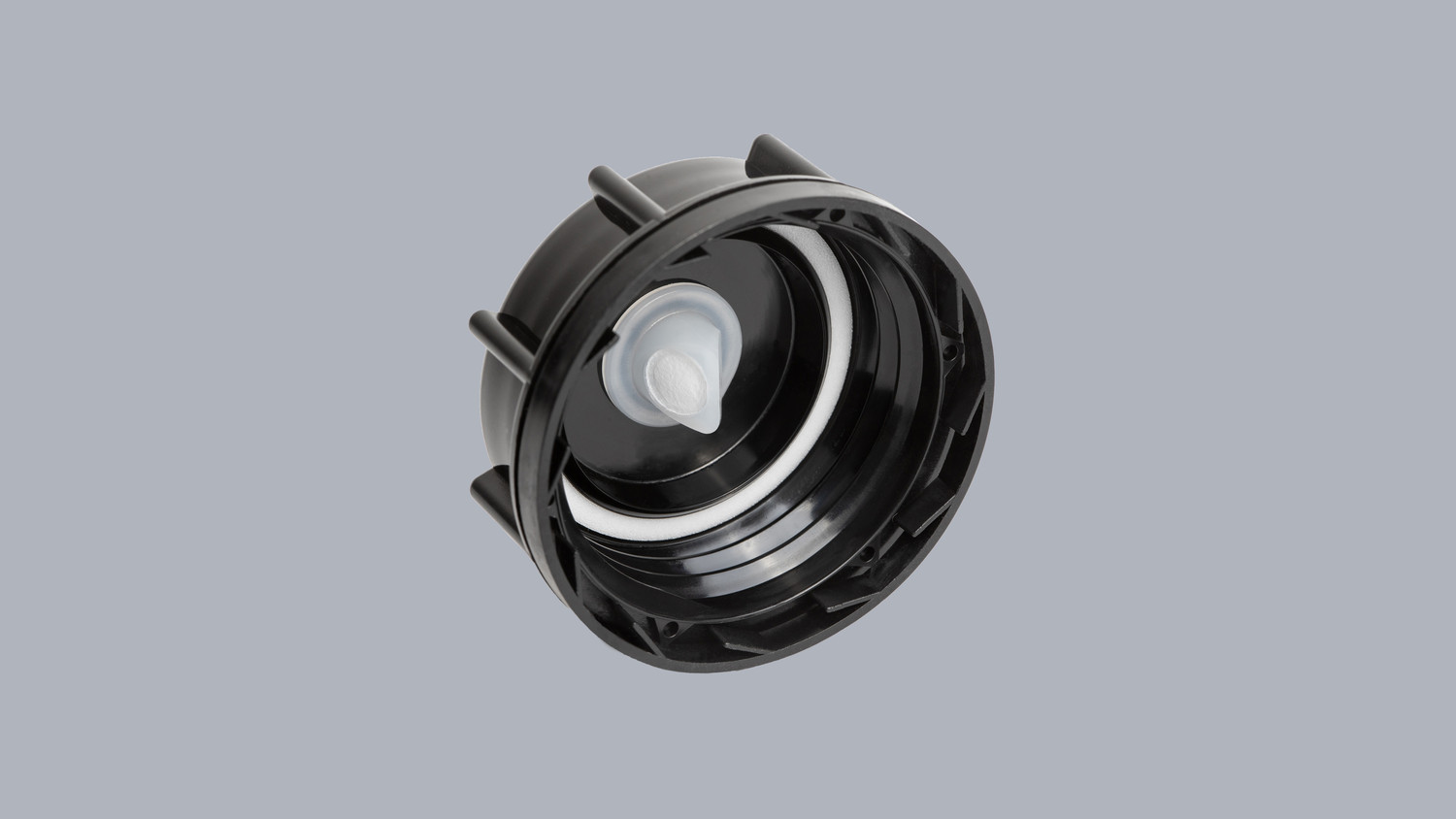

Item Number: 357 13x

with molded on tamper-evidence
ring for DIN 51 thread

Performance:
Typical airflow at 12 mbar: 5.0 L / h
Typical water entry pressure: 0.8 bar

Dimensions:
Ø A = 50.2 mm / 1.976 in.
Ø B = 54.8 mm / 2.157 in.
P (Thread pitch) = 5 mm / 0.197 in.
H = 5 mm / 0.197 in.

Quantity:
10,000 pcs. (20 cartons)

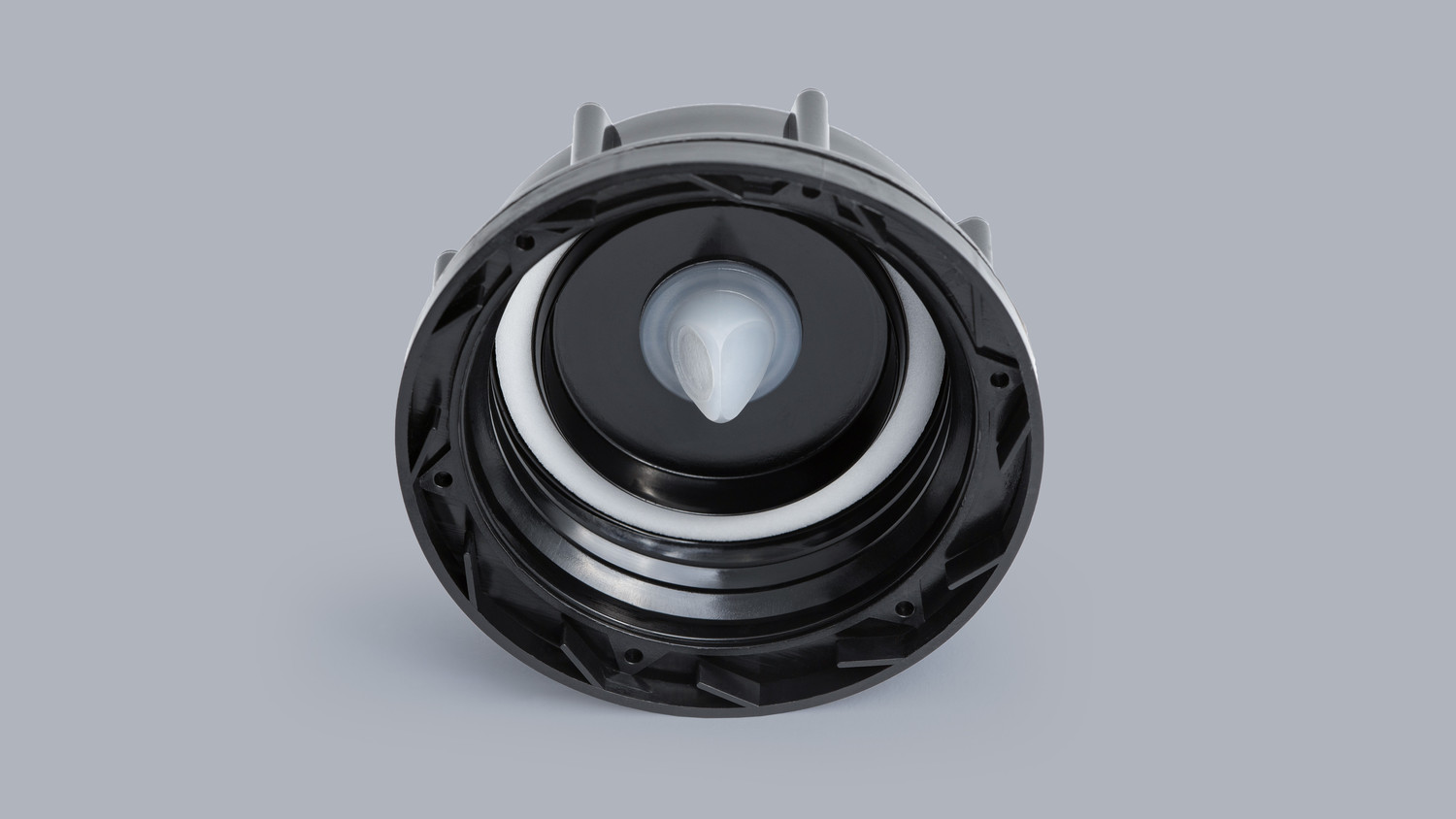

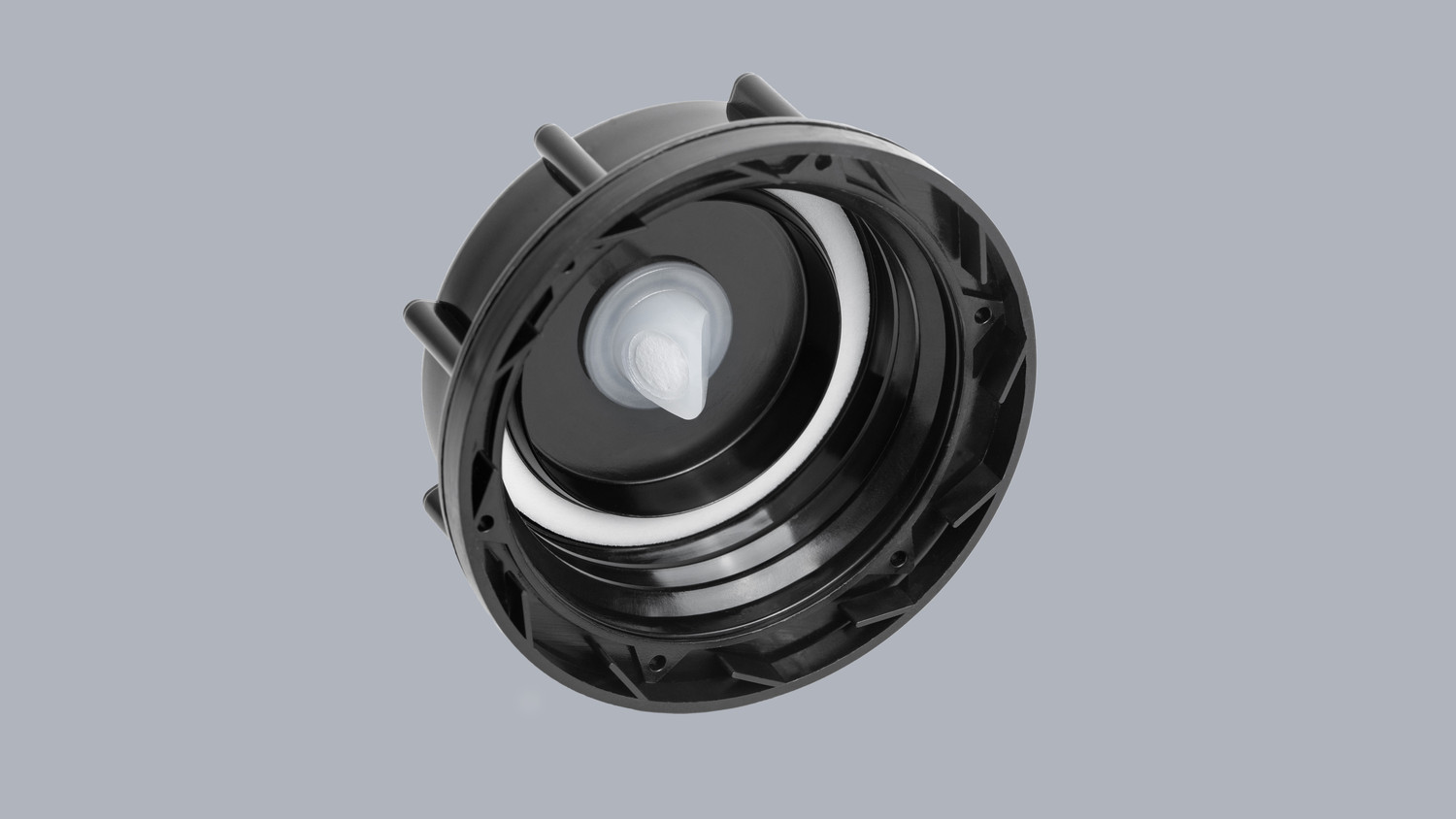

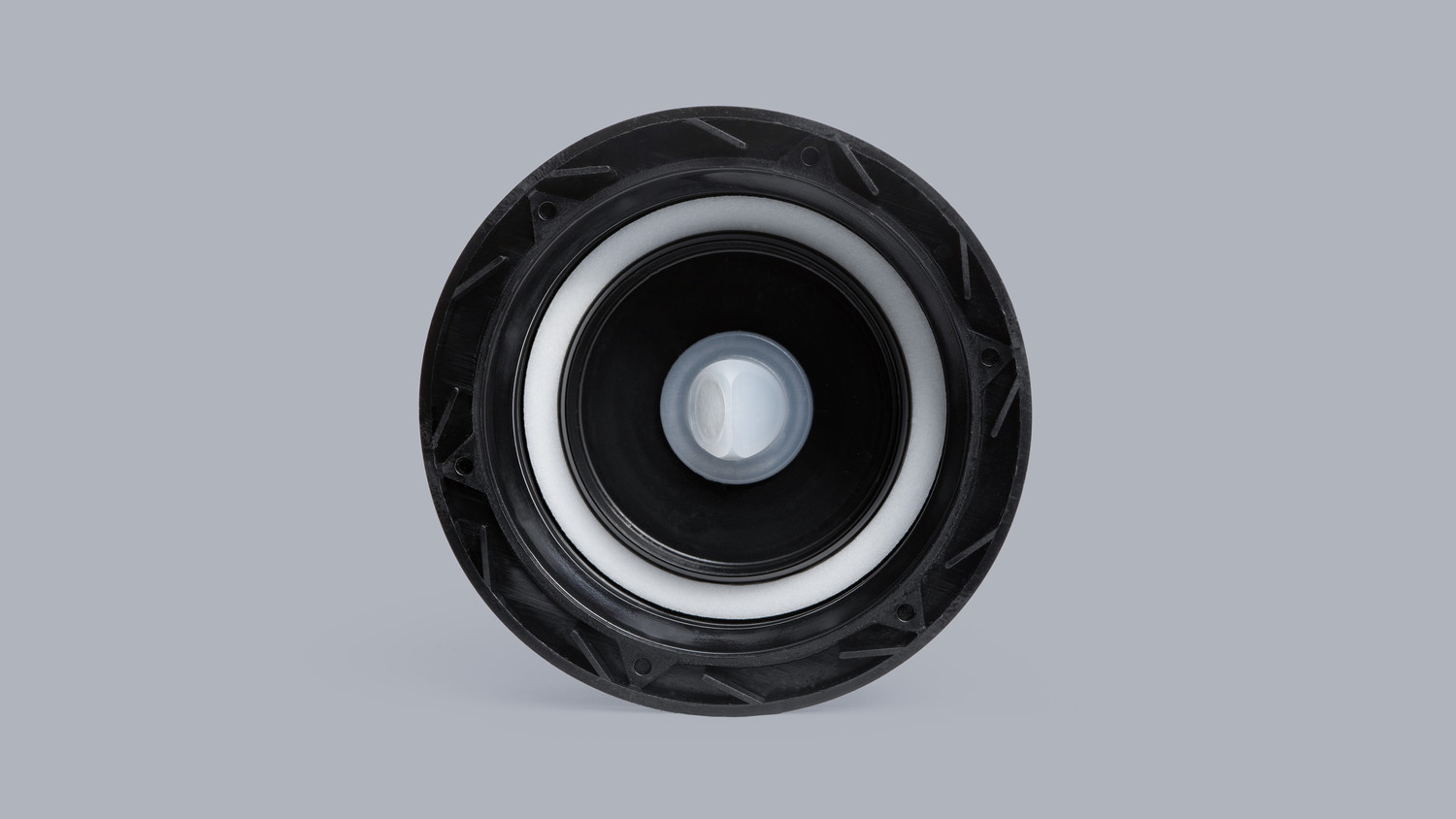

Item Number: 367 13x

with molded on tamper-evidence
ring for DIN 61 thread

Performance:
Typical airflow at 12 mbar: 5.0 L / h
Typical water entry pressure: 0.8 bar

Dimensions:
Ø A = 55.6 mm / 2.189 in.
Ø B = 60.5 mm / 2.382 in.
P (Thread pitch) = 6 mm / 0.236 in.
H = 5 mm / 0.197 in.

Quantity:
7,000 pcs. (20 cartons)

Item Number: 332 94x

with molded on tamper-evidence
ring for DIN 45 thread

Performance:
Typical airflow at 12 mbar: 15 L / h
Typical water entry pressure: 0.3 bar

Dimensions:
Ø A = 41.1 mm / 1.618 in.
Ø B = 44.8 mm / 1.764 in.
P (Thread pitch) = 4 mm / 0.157 in.
H = 5 mm / 0.197 in.

Quantity:
18,000 pcs. (20 cartons)

Item Number: 357 14x

with molded on tamper-evidence
ring for DIN 51 thread

Performance:
Typical airflow at 12 mbar: 15 L / h
Typical water entry pressure: 0.3 bar

Dimensions:
Ø A = 50.2 mm / 1.976 in.
Ø B = 54.8 mm / 2.157 in.
P (Thread pitch) = 5 mm / 0.197 in.
H = 5 mm / 0.197 in.

Quantity:
10,000 pcs. (20 cartons)

Item Number: 367 14x

with molded on tamper-evidence
ring for DIN 61 thread

Performance:
Typical airflow at 12 mbar: 15 L / h
Typical water entry pressure: 0.3 bar

Dimensions:
Ø A = 55.6 mm / 2.189 in.
Ø B = 60.5 mm / 2.382 in.
P (Thread pitch) = 6 mm / 0.236 in.
H = 5 mm / 0.197 in.

Quantity:
7,000 pcs. (20 cartons)
